S&D Engraving Services Limited

ZBAITU 20W Laser Engraver Cutting Machine Quad Laser Module Head With Air Assisted Engraving Cutting Metal Arcylic Wood Engraver

ZBAITU 20W Laser Engraver Cutting Machine Quad Laser Module Head With Air Assisted Engraving Cutting Metal Arcylic Wood Engraver

Regular price £77.99 GBP
Regular price £102.99 GBP Sale price £77.99 GBP
Sale Sold out
Shipping calculated at checkout.
Color

SPECIFICATIONS

Origin: Mainland China

Model Number: M81-FF200, M8-EX-200

Is Smart Device: YES

Condition: New

Certification: CE

Certification: FCC

Certification: RoHS

CNC or Not: CNC

Brand Name: ZBAITU

ZBAITU 20W Laser Engraver Cutting Machine Quad Laser Module Head With Air Assisted Engraving Cutting Metal Arcylic Wood Engraver

-Built-in 4pcs 5W beam compressed laser diodes

-The optical power 20W module is the most powerful blue laser head on the market.

1.The World's First Quad-core Diode Laser

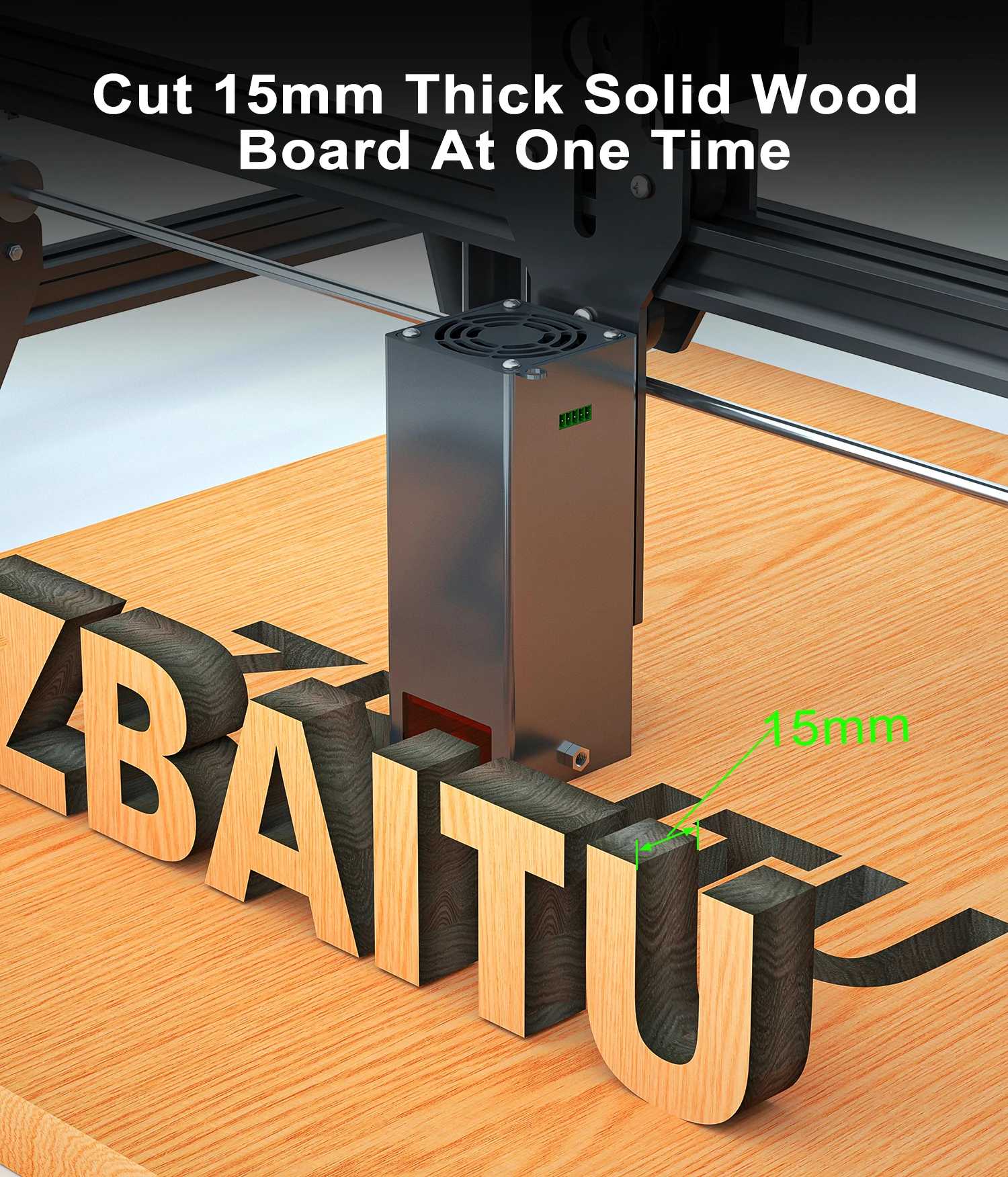

2.Cutting 15mm soild wood board by one pass

3.8mm Acrylic Cutting in One-PASS

4.It can even cut 0.5mm thin sheet metal

5.Built-in Powerful air assist kit

6.Compatible with Ortur, NEJE, Two-Trees engraver as well.

Carving Objects:Wood, bamboo, cardboard, plastic, leather, PCB board, aluminum oxide, non-reflective, Electroplating layer and paint surface layer metal, 304 mirror stainless steel, glass, ceramics, cotton cloth, slate;

Cutting Objects:Cardboard, non-woven fabric, wood board, acrylic, some thin plastic board, sponge;

1. Equipped with air-assisted system, which is extremely helpful for cutting and engraving.

2. Made of aluminum, strong and durable.

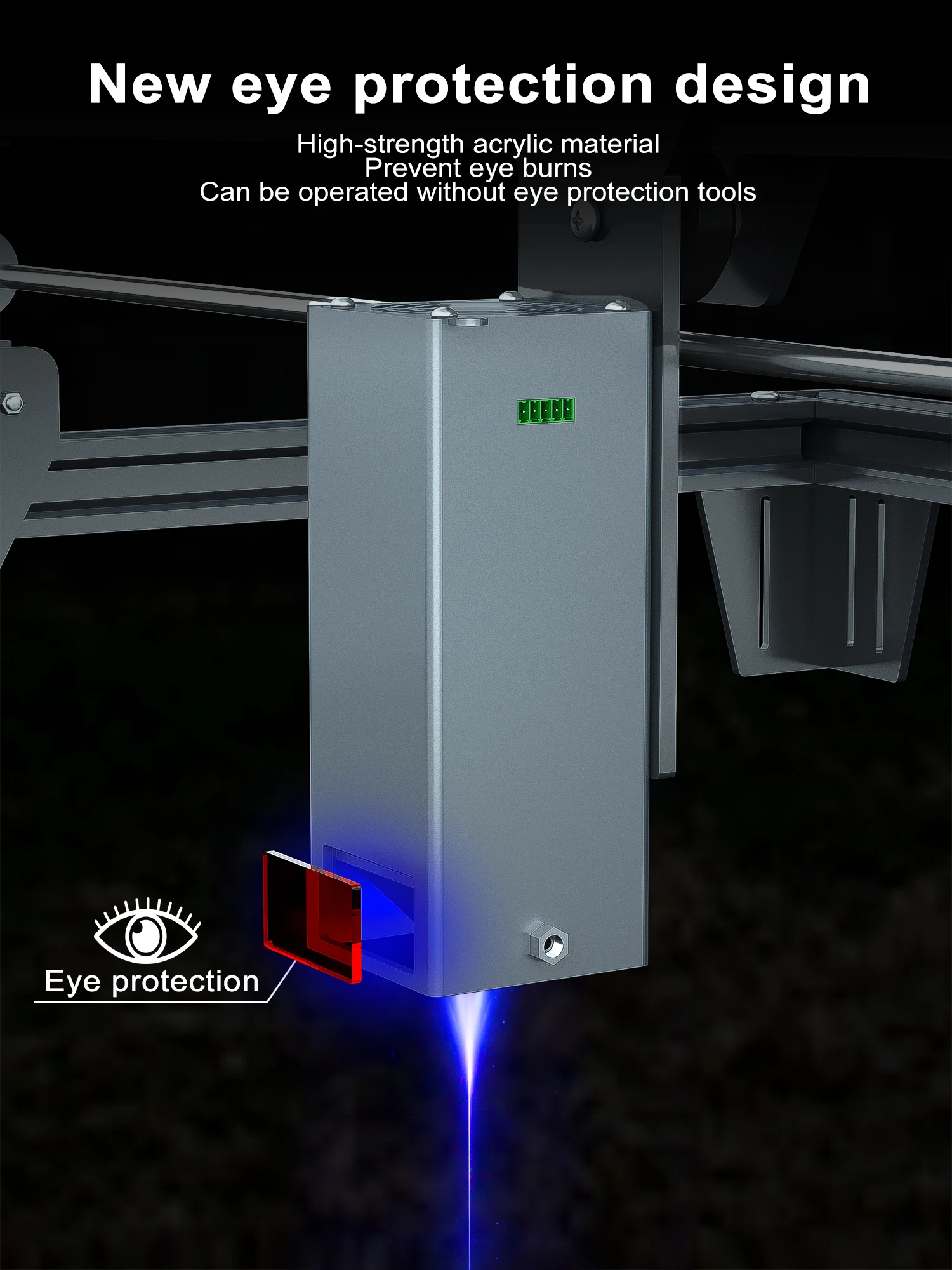

3. The laser head is equipped with a goggle piece that protects the user's eyes while preventing pets from grabbing the laser dot.

4. Upgraded high quality fixed-focus laser, no need to focus.

5. Aviation aluminum TTL driver board with cooling fan can ensure continuous long time work.

6. Engraving speed is 200% higher than other 10W lasers.

7. The wind-collecting hood can clean the smoke and dust to protect the lens to avoid laser energy attenuation.

Specifications:

Model: ZBAITU FF200

Power: 130W

Laser Power: 20W

Product Material: Aluminum

Module Size: 150*60*60mm

Circuit Board: V/PWM Modulation Board

Fan: 24V

Laser Beam Mode: Spot

Working Mode: Pulse Work

Light Spot Size: 0.08*0.0.08mm

Wavelength: 445±5nm

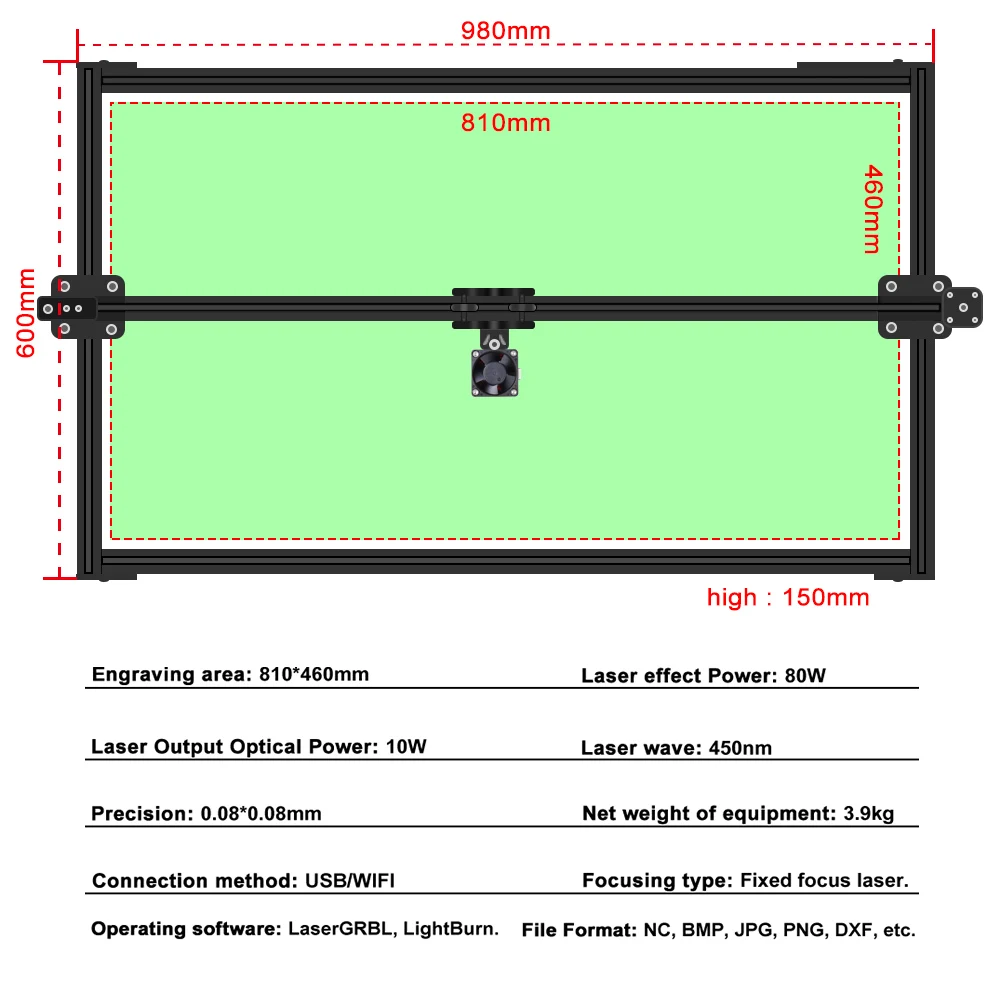

M81 Machine Working Area is 81*46cm

M81 Extended Machine Working Area is 80*80 cm


Materials
