S&D Engraving Services Limited

New Ortur Master 2 Fixed Focal 20W Powerful Laser Engraving Machine Engraver Cutter with Upgrad Version Y Axis Rotary Roller

New Ortur Master 2 Fixed Focal 20W Powerful Laser Engraving Machine Engraver Cutter with Upgrad Version Y Axis Rotary Roller

Regular price £306.99 GBP
Regular price £539.99 GBP Sale price £306.99 GBP
Sale Sold out
Shipping calculated at checkout.
Ships From


Origin: Mainland China

Motors: NEMA 17 Stepper Motors

Motherboard: OLM V1.3 Motherboard 32 bit MCU

Model Number: OLM 2+YRR

Mechanical Precision: X: 12.5um Y 12.5um

Is Smart Device: NO

Input Voltage: 110-220V compatible

Frame Materials: Aluminum+Acrylic

Firmware: Ortur Laser Master V1.34 Firmware

Control Software: LaserGRBL (free) LightBurn (not free)

Control Mode: PWM

Certification: ce

Certification: CE

Brand Name: Ortur

New Ortur Master 2 Fixed Focal 20W Powerful Laser Engraving Machine Engraver Cutter with Upgrad Version Y Axis Rotary Roller

Order Notice:

1.To EU countries, pls leave tax numberin order notice if ship from China.

2 .Freeshipping does not include the customs fees to pay, not included the remote area charge too

3. Seller's shipping methods are shipping by express company, such asDHL/FedEx/ UPS/ TNT;

4.Tax free to EU countries, please choose "seller's shipping method"and add note "slow DPD method" when place order, but please note it need 25-45 days to delivery.

Any question, please contact with us!

Y Axis Rotary Roller Specification


Type: Laser engraving machine rotation shaft
Material: Aluminum + Acrylic + Plastic
Laser Power: no
Laser Reaching Range: no
Power By: no

Dimensions and Weight

Package weight: 1.3500 kg
Package size (L x W x H): 12.90 x 18.40 x 8.10 cm / 5.08 x 7.24 x 3.19 inches

Package Contents

Package Contents: 1 x ORTUR Y-axis Engraving Module

Ortur Laser Master 2 Specification


Brand: Ortur
Model Number: Laser Master 2 S2
Type: Laser engraving machine
Material: Aluminum + Acrylic
Laser Power: 7w (Electrical Power: 7W, Luminous Power: 1200-1600 mw), 15w(Electrical Power: 15W, Luminous Power: 4000-4500 mw), 20w(Electrical Power:20W, Luminous Power: 5000-5500mw)
Laser Reaching Range: 445 ± 5nm
Power By: Power Adapter 12v 3A

Dimensions and Weight

Product weight: 2.8000 kg
Package weight: 3.4000 kg
Product size (L x W x H): 57.00 x 55.00 x 17.52 cm / 22.44 x 21.65 x 6.9 inches
Package size (L x W x H): 58.00 x 20.00 x 11.00 cm / 22.83 x 7.87 x 4.33 inches

Package Contents

Package Contents: 1 x Laser Engraving Machine

Brief Introduction:
The King of Most Cost-effective Diode Laser Engraving Machine: Upgraded from most popular ortur laser master 2, Ortur Laser Master 2 S2 adopt latest OLM-PRO-V10 motherboard and 32-bit MCU +24V Circuit, the focal spot 0.08mm*0.15mm is a quarter the size of average lasers’ focal spot, 9 mm thick board is not the limit.
Most Professional Engraving and Cutting Options:Both SF and LF can do engraving and cutting!

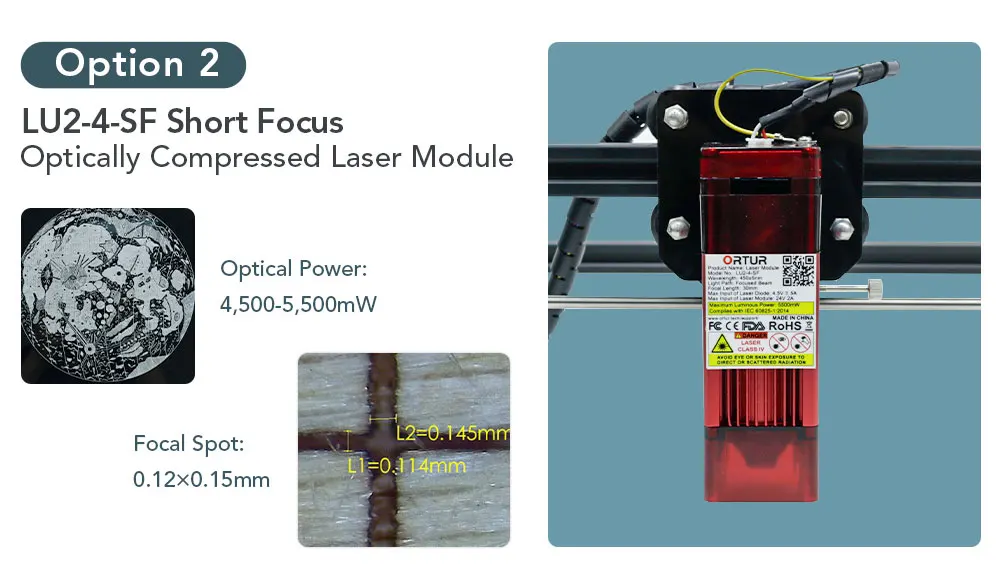

The focus of the SF laser is smaller, the image is finer, and it is more suitable for engraving.
LF has a longer depth of field with bigger power density. and it is more suitable for cutting.
The max. thickness is 20mm plywood (equipped with LF nozzle, the cutting surface is smooth and there will be no black edges).
Buyers only to order air compressor by yourself for LU2-4 LF laser mould.

Much Faster Than Average:Ortur Laser 1.5 series firmware, increasing the maximum speed from 3000mm/min to 5000mm/min.

Ultimate Engraving Experience with higher precision:Due to the use of 12bit precision PWM control signal, more than 1000 grayscale performances give you real photo-like details.

24-hour Stable and Consistent Engraving:24V electric system in motherboard supports powerful laser module and more add-ons. high-quality flexible cables and wire-protecting chains ensure 24 hours uninterrupted operation and consistent engraving result.

Latest Laser Beam Compressed Focal Spot Technology: Ortur Laser Master 2 pro S2 adopt the latest 5.5W higly compressed focal spot laser modulediode, it has an ultra-fine 0.06mm sharp laser focus, with super cutting penetration and precision, can cut up to 12mm thick wood, 10mm acrylic, carve ceramics and stainless steel.
Fast Focusing Design: Combines a fixed focus lens and a sliding design. You only need to slide the laser and tighten the screws to complete the focusing. This makes it very easy to use.
Solid & Easy Assembly Structure: The full-metal structure design makes the machine work stably, and improves the engraving accuracy. The assembly can be completed in 10-20 minutes. The structural frame is very durable and available to upgrade. During use,
Wide Compatibility: The machine is compatible with various mature engraving software, such as LaserGRBL, LightBurn, Benbox, GrblController, LiteFire, supports PWM mode engraving, supports Windows system, Apple system (LightBurn), and engraving file format Support JPG, PNG, DXF, SVG, G-code, NC, BMP, etc.
Safe Design: The laser filter cover filters 98% of the ultraviolet light to the eyes. The light filter cover on the laser head protects the user's eyes and prevents animals grabing the laser spot.When the machine is displaced or tilted, or computer crashes during the engraving process, or motors stop moving, the laser will automatically stop to prevent any possible damage.
Square measuring ruler:X-axis and Y-axis contain precise scale lines, which is convenient for you to measure the size of engraving objects quickly. The 410x390mm large-area engraving interval can meet your various engraving needs.

Worry-free After Sales Support Team:There is a professional after-sales engineer team in Europe and United States to answer you technical questions. And a complete ticket system, you can solve technical problems in the ortur ticket system and online customer service. You could contact our support team by for any questions! Our engineer could study and provide correct solutions in time! Provide one-year after-sales service, free replacement parts for any problems during the period.

At ORTUR, users can make an impact:Now ORTUR has a FB group with over 28k core users that can continuously provide valuable upgrading suggestions for ORTUR’s products.“ORTURS users are the core asset for us..” Director said!

● Please wear goggles when operating the laser engraver. Wear safety goggles to avoid blindness.
● Please do not touch the laser emitter with your hand, or it may burn your hand.
● Please avoid strong impact on the machine.
● Children under 14 are not allowed to use this product and children over 14 need adult supervision.
● The light engraving machine can not be directly applied to any mirror reflecting object, which may cause injury to the operator or burn the laser.
● This product is not recommended for industrial cutting due to its high engraving speed.

Tip: Because the software is constantly updated and optimized, pleaseclick hereto view the updates.


About Ortur Online Store:
100% factory manufacturerlocated in China, welcome to visit our factory whenever you like!
We offer you a wide range of 3D printers and Ortur Laser Master series with performance levels adequate to the various uses which you could envision for your 3D printer.
It is important to know that our factory do not just sell "boxes", but we offer support and advice to get the best results with the printer you choose.
We are always available to provide the spare parts and filaments you need with your 3D printers/Ortur Laser Masters.
You could rely on us for the consistent quality and service!
About Tax:
Most countries we ship the parcel for free shipping , but we do not cover any tax and duty!
About customs charging fee . no body can control , every country customs has different Import and export tariff system.
About Maintenancece:
All products have12 months warrantyagainst manufacturing defects,buy it with confidence. If any breakdown, send us the working video, we shall offer solutions for you. Usually we do not accpt return. If the item was damaged during transportation or cannot be used normally, pls do not hesitate to contact us and provide us the photos and working video, we will give a partial refund or send the spare parts for free.
About delivery:
we need 1-3 days handle order in factory when payment received. As normal, it needs 5-7 days update first tracking and 15-60 days for delivery. If you do not receive the goods as promised,pls feel free to contact us before opening a dispute or leaving us a negative feedback.We would reply you within 24 hours and provide the best solution. If the parcel confirmed lost during transportation, we will give you a full refund or resend the item without any extra fees.
