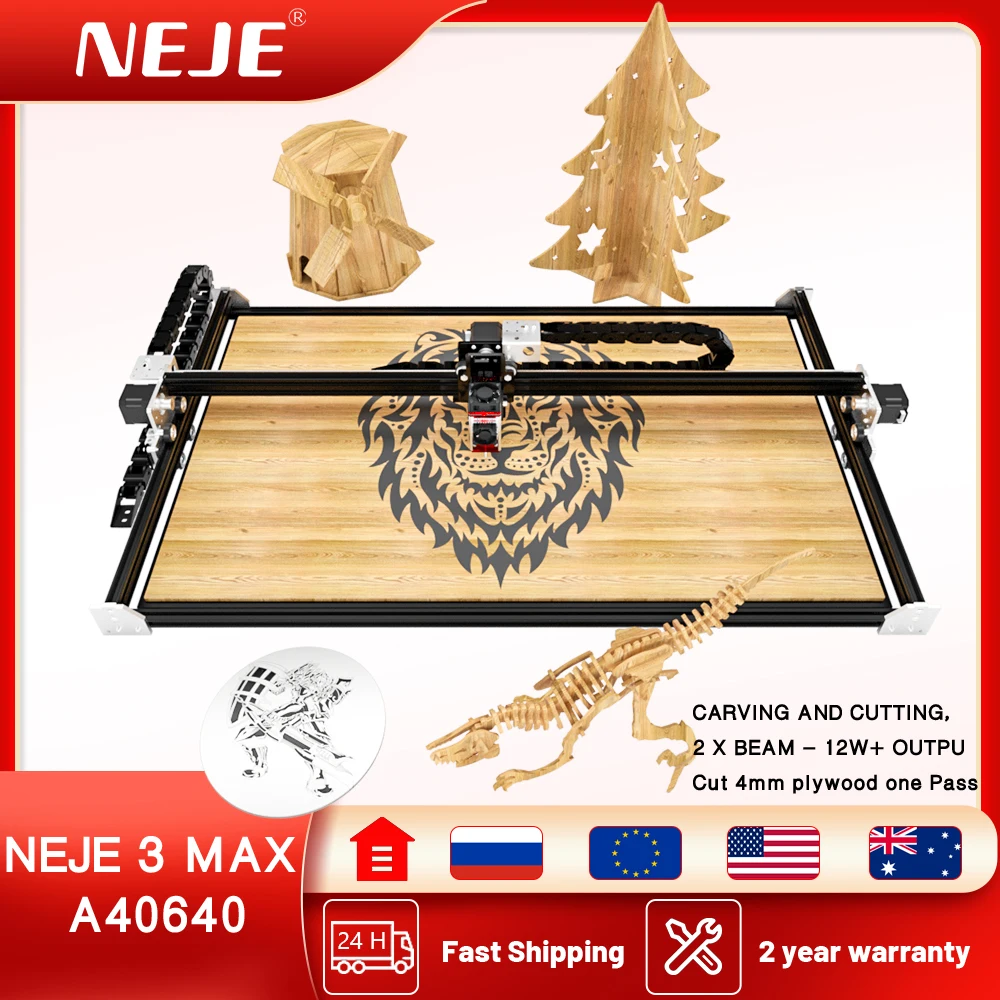

NEJE 3 Max Powerful Laser Engraver A40640 CNC Router Desktop Cutter LaserGRBL Offline Control DIY CNC Laser Engraving Machine

NEJE 3 Max Powerful Laser Engraver A40640 CNC Router Desktop Cutter LaserGRBL Offline Control DIY CNC Laser Engraving Machine

Regular price £217.99 GBP
Regular price £286.99 GBP Sale price £217.99 GBP
Sale Sold out
Shipping calculated at checkout.
Ships From
Color

SPECIFICATIONS

Origin: Mainland China

Model Number: NEJE 3 max

Is Smart Device: YES

Condition: New

Certification: CE

CNC or Not: CNC

Brand Name: NEJE

















1. NEJE Official Store, factory direct sales
2.NEJE professional technical team and high-quality after-sales team
3. Fast delivery from overseas warehouses: Poland/Germany/Russia/US/UK
4. EU countries can contact customer service to avoid paying high taxes
5. Support OEM/ODM





NEJE 3 Max is a professional laser engraving and cutting equipment. The 810x460mm area can meet most of the engraving and cutting needs. Through the extension rod provided by NEJE, a working area of 810x1030mm area can be obtained. NEJE 3 series all support APP control and control accuracy, Up to 0.01mm, you can get top engraving works through software such as APP and lightburn. With NEJE A40640 full-featured module, it is the most suitable for stainless steel engraving, stone engraving, wood relief art, large area canvas art, cutting sheet, acrylic, cloth Perfect choice. NEJE 3 Max is equipped with automatic air assist, automatic smoke exhaust control components, and extended functions of Door safety door, and is compatible with all NEJE series modules. The extended functions are perfectly suitable for Lightburn, laserGRBL, and NEJE software APP. Build a perfect laser engraving and cutting system, The NEJE 3 Max also comes with optional honeycomb panel, supports all rotating fixtures, improves cutting quality and various shapes of materials. NEJE 3 Max can always bring shocking works, and the powerful expansion capability is a must-have tool for professional diode laser crafting enthusiasts.

NEJE A40640 module is an zoom carving and cutting module specially designed to overcome high hardness materials and high-speed engraving, and it also has strong cutting ability. NEJE adopts NEJE's unique optical processing technology to compress the focus to 0.04x0.06mm and has 12W pulse Power, focus are clearer than ordinary 2 LD modules, there is no stray light interference on the edge, each pixel is powerful, it can directly and clearly engrave grayscale images on stainless steel and stone surfaces, as well as on wooden 3D images\ Plasma high-definition effect. Stronger energy density and clearer engraving focus than 4xLD laser module, can be said to be the king of engraving. The NEJE A40640 module is an zoom focus module, which can obtain a 20mm thickness cutting ability at a 55mm focus, and has excellent performance in cutting acrylic, wood board, fabric, balsa, corrugated paper, EPE and other materials. NEJE designed a metal quick-release air nozzle for the A40640 module, which can be compatible with cutting needs of different focal lengths. The latest lens has added a high-temperature window lens, which can effectively prevent water and smoke from damaging the lens. If you want to find a model that can A module that solves almost all your needs, A40640 is the best choice.

【New E40 Laser Module】

E40 is 2 beam fixed module with 11W pulse and 10W+ continuous power output capability, Same engraving capability as A40640, It is a carving and cutting module with high cost performance and wide application


BUILD A POWERFUL LASER SYSTEM


In order to ensure that the product is absolutely reliable after each user receives the product, NEJE has done a complete machine test for each device, you only need to simply install 6 screws to complete the initial assembly.



It is recommended to install the X-axis drag chain support frame first, and then install the X sliding assembly;



The M7 relay module is generally used for the control of the smoke exhaust system. Some users also use it to control the oxygenator, which is not very safe! M8 air valve is generally used to control the air circuit of the user. You need to cut the air pipe according to the actual situation, and connect the other end to the air compressor or other air source; Y-R motor don't forget to connect.




M7 relay expansion accessories, can be used to control AC or DC power supply smoke exhaust system, can also be used to control other circuits, used as M8, there are safety risks when operating high-voltage circuits, requiring professional operation; M8 valve expansion accessories, can be used To control the air compressor switch;

Specification:

Structure
Frame Size (L - W -H):   590x980x160mm
Working Size ( X - Y):  460 x 810mm, area extended design
Dot Pitch: 0.075mm
Pixel:  6133 x 10800 px
Frame Material:   All-aluminum alloy and PC material hybrid frame
Structure Technology:  Y-axis fit adjustable design, X-axis stress fit assembly
Structure Feature:  Fit, High precision, stablize, smooth, no oil, easy maintenance, long life
Vertical Carving:  Yes
Motor Size: 42 x 42 x 40mm
Motor Drive Current: 0.9A
Module Height Adjuster: Yes
Limit Switch: Yes
Home: Rear Left
Origin: Front Left
Max Move Speed:   X:1000mm/s,Y:750mm/s(with A40640 module 204g)
Control System
MCU: 32-bit MCU
BLE: Yes
MEMS: Yes
Input: 12V 5A
Compatible Modules: All NEJE 12V 4pin Laser Moudle
ON/OFF Switch:Yes
Software Service
OTA Upgrade:Update NEJE firmware, GRBL firmware, update latest software via NEJE Win software.
LaserGRBL: Yes, Added low light function, added M8, M7, emergency stop extended automatic control, optimized GRBL interaction.
LaserGRBL: Yes, Added low-light display and can be adjusted, added M8, M7, Door function automatic adaptation.
NEJE Win Software: Yes, It is recommended to open the NEJE software to update to the latest firmware for the first time use.
Off-Line Working:Yes, In NEJE Win software and NEJE APP mode, when the image is transferred to the device, it can work independently from the computer or mobile phone.
Repeat Engraving:
Yes, After the engraving or cutting is completed, the device will not lose the location information, if you are not satisfied with the work, you can continue to work.
NEJE Android APP: Yes
NEJE iphone/iPad APP: Yes
NEJE Cloud Gallery Service: Yes
Software Download: Https://neje.wiki
NEJE A40640 Laser Module
Radiator Size: 40 x 50 x 60 mm
Weight: 204g
Speed of the Fan: 10600RPM(Double ball bearing)
Interface: PH2.0 4Pin
Drive Design: Built-in
Input: 12V 4A +
Optical Power: 10W +
Wavelength: 450nm
Laser Class: Class 4
Number of Diodes: 2
Light Source: 2 X LD + FAC Tech + C-Lens
Focus Spot : 0.13x0.13mm-0.18x0.18mm,
focus on 33mm: 0.13 x 0.13 mm,
focus on 55mm: 0.18 x 0.18mm
PWM Input: VPP(3.3-12V), Recomend 1KHz,
Quiet Design: Drive the built-in control ic, judge the working state and adjust the fan work.
Max Cutting & Carving Depth: 18mm (The data is tested by NEJE users, and it needs to be done under more accurate focusing and adding correct and certain strength of air assist.)
Brushed Stainless Steel: Yes
Mirror Stainless Steel: Yes
Warranty Statement
Laser Module Warranty:  2 Years
Control system warranty:  2 Years
Hardware warranty:  1 Year
Statement:
The conditions of NEJE's free after-sale policy must be met under the conditions of non-human disassembly and misoperation and use in the correct environment. If the wrong voltage is input, or the lens is damaged due to lack of maintenance, it is not within the scope of free after-sale; for maintenance instructions, please refer to NEJE.WIKI

Packing list:

NEJE 3 Max Machine(All functions of the whole machine are tested, and only 6 screws are needed to complete the assembly) x 1

NEJE Laser Module with air Assist Kits x 1

12V 5A standard certified power adapter x 1

USB Cable + Manual + Quality Card x 1

Goggles x 1

L-shaped Crawler Aluminum Profile x 1

Crawler x 2

12V Valve Control Kit (less than 1.5mpa) x 1

12V Relay Expansion Control Kit (Extra AD or DC power Max 2500W) x 1

Door Control Kit x 1

(The length of the control line is 1 meter.)

Screw Nut Wrench Screwdriver Belt Installation Package x 1

Test Material Package x 1



Please Note

If there is a customs spot check, the customs duty is borne by the customer,hope you can understand.
Do not accept bad reviews and disputes due to tariffs.


Note:Polish warehouses and German warehouses cannot be shipped to the Canary Islands, Balearic Islands, and Ceuta. Spanish warehouses cannot be shipped to the Canary Islands and Ceuta.Customers in the above regions should not choose overseas warehouses for delivery.
