LASER TREE 80W 40W Laser Module with Air Assist 20W 450nm Blue Laser Head for CNC Laser Cutting Machine DIY Laser Engraver Tools

LASER TREE 80W 40W Laser Module with Air Assist 20W 450nm Blue Laser Head for CNC Laser Cutting Machine DIY Laser Engraver Tools

Regular price £55.99 GBP
Regular price £72.99 GBP Sale price £55.99 GBP
Sale Sold out
Shipping calculated at checkout.
Ships From
Color

SPECIFICATIONS

Wavelength: 450nm

Service: Dropping Shipping Service

Origin: Mainland China

Model Number: 80W Air Assist Laser Module

Input port: XH2.54-3P socket

Input: 12V

Feature 4: 23mm fixed focus, suitable for DIY engraving/ cutting (LT-40W-F23)

Feature 3: 20mm fixed focus, suitable for DIY engraving (LT-40W-F20-GOLD)

Feature 2: Adjustable laser head (LT-40W-A-GOLD, LT-20W-A)

Feature 1: with air assist (LT-80W-AA, LT-40W-AA)

Control line installation method: Pluggable

Certification: CE

Brand Name: Laser Tree

Adjustable power: Support 0/5-12V 0-5kHz TTL/PWM modulation








450nm Air Assist Laser Module for Laser Engraver Cutter

By LASER TREE

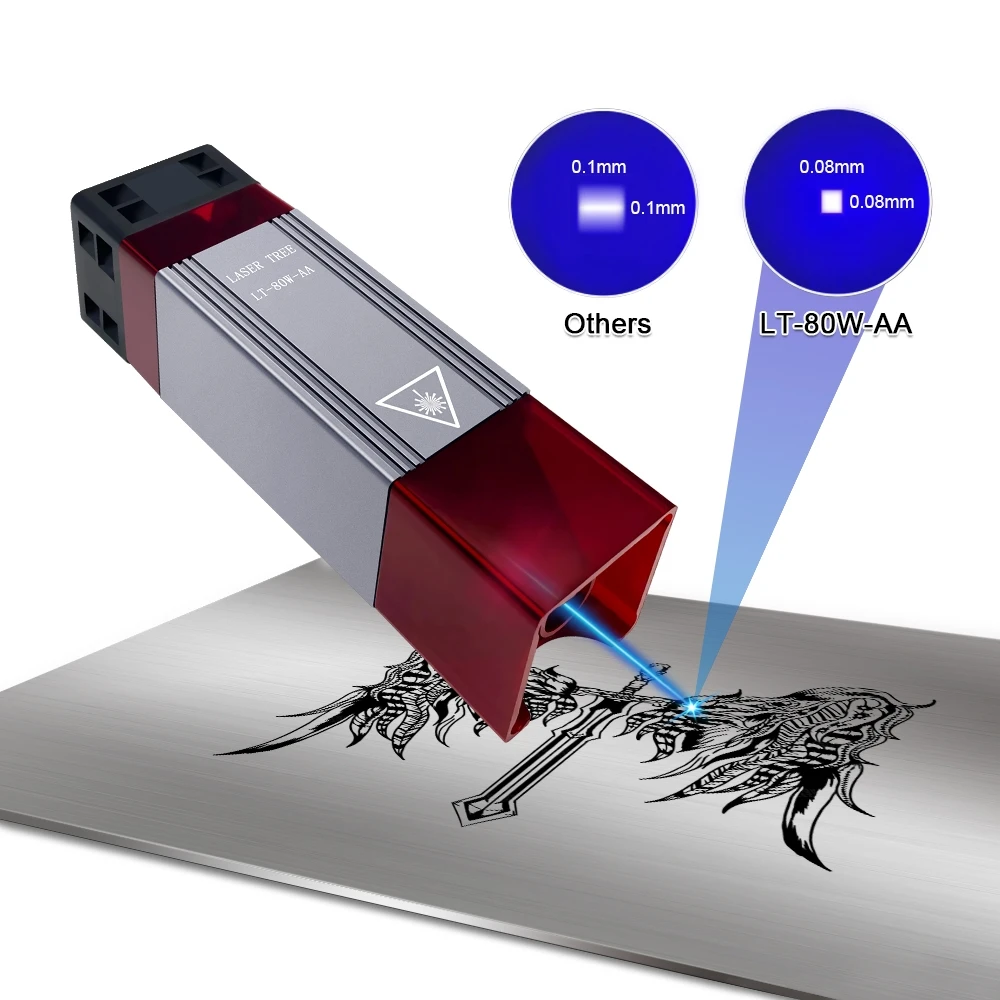

LT-80W-AA:


Product Description

Blue laser module with air assist, high speed, high stability, excellent cutting effect, bright blue light, easy positioning when engraving.


Features:

1. with Air-assist: Blowing through the air nozzle, which improves cutting performance and reduces burn marks.

2. Super fast engraving speed: 304 stainless steel, ultra-fast engravingon stainless steel-30mm/s.

3. Remarkable cutting ability: Cutting through 8-10mm thickness plywood by one pass at speed of 1.5mm/s.

4. Fixed focus laser head: suitable for three-axis engraving machine, easy to install.

5. Original diode: Original diode, high quality, 20,000 hours life time!

6. Strong compatibility: Suitable for various types of laser cutting machines and engraving machines.


[Applicable Materials] Ceramics, Bone, MDF, Coated glass, Black acrylic, Plywood, Brushed stainless steel, Stone, Bamboo, Leather, Rubber, Alumina, Solid wood, etc.

[Precautions] Unable to engrave: blue/purple/white/transparent material, aluminum without oxide layer.

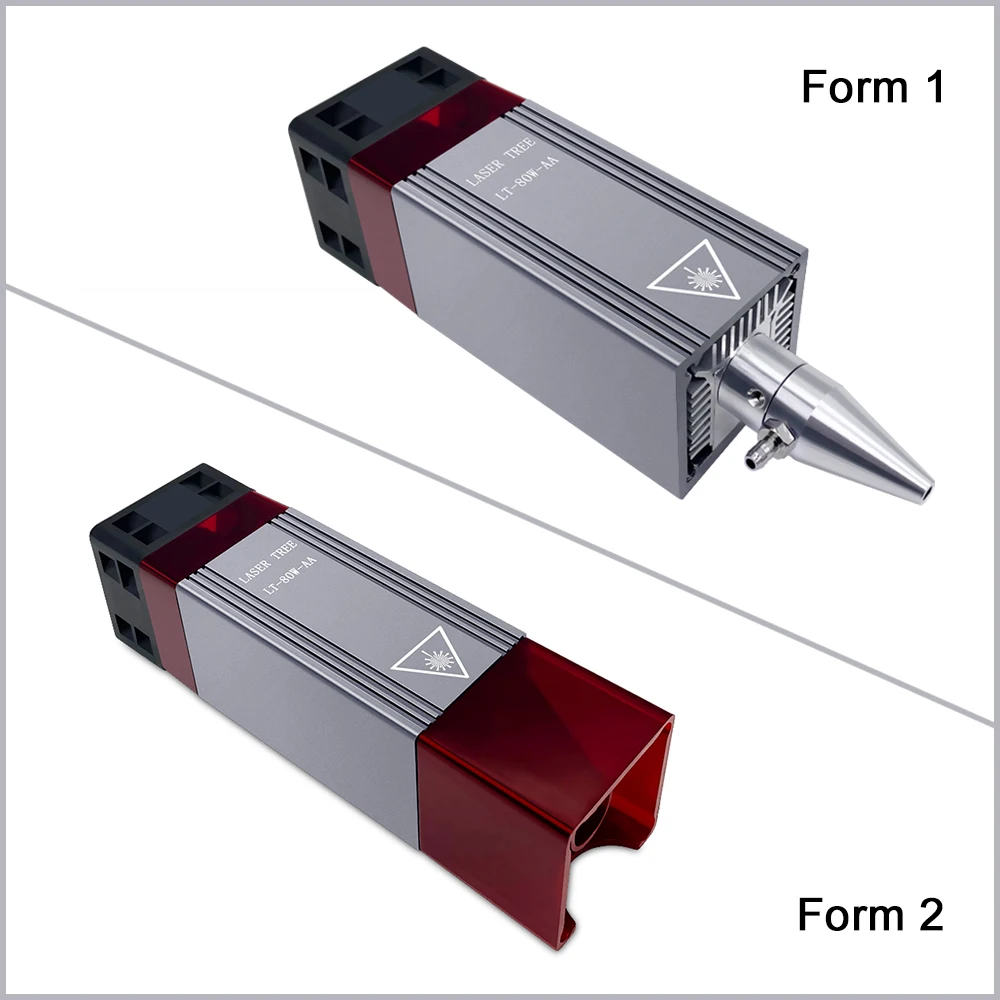

Two Forms of LT-80W-AA:

Form 1: with the air asssit nozzleThe laser head comes with a specially designed air assist nozzle. When cutting with this laser head, the air assit system will blow air through the air nozzle. That will greatly reduce burned marks and bring you excellent cutting experience.
To make full use of the air assist, please prepare an assist pump and air tubing by yourself.

Recommended Air Tubing inner diameter: Φ2.5-3mm

Recommended air pump pressure: 150kPa


Form 2: with the laser protective cover. When engraving with this laser head, please use this protective cover that can effectively filter blue light. For convenience, you can work without wearing laser goggles.


Specifications:

Effect output power: 80W

Output optical power: 10W

Material: aluminum alloy + plastic

Light color: blue

Wavelength: 450nm

Spot form: Punctiform, fixed focus

Input voltage: 12V 3.2A
(If you need 24V, please check out the link: https://www.aliexpress.com/item/1005003887061071.html)

Input port: XH2.54-3P socket

Interface parameters: support TTL signal control power

Item size: 15 * 4 * 4cm

Packing size: 20 * 12 * 8cm

Laser module net weight: 250g

LT-80W:


Product Description:

The blue laser module is specially designed for CNC milling machine and DIY cutting. The wavelength is 450nm, the fixed focus is 45mm, which is an effective tool for laser cutting. They can engrave and cut various materials.


Features:

1. Dual-LDs Compression Technology--- 10W strong optical power laser module

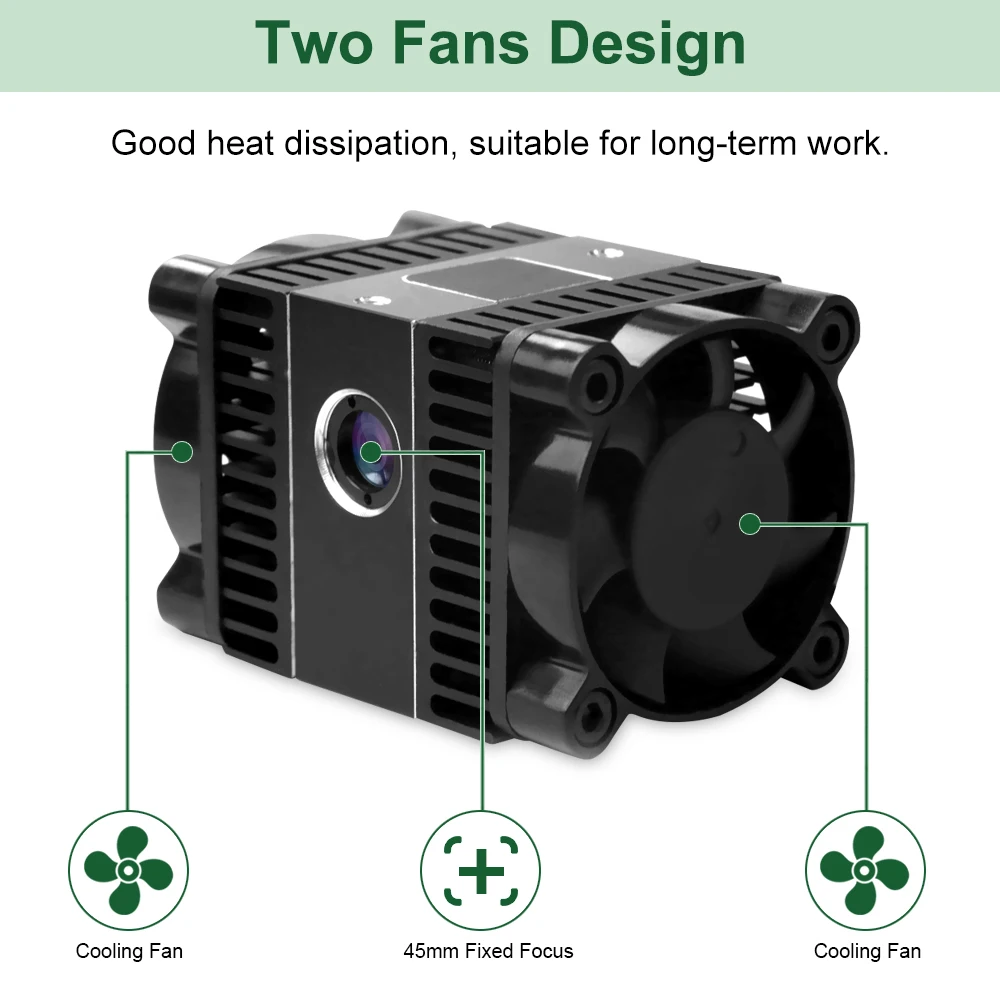

2. Two Fans Design---Good heat dissipation, suitable for long-term work

3. 45mm Fixed Focus ---Suitable for three-axis engraving machine, easy to install

4. Widely Compatibility--- 12V 4A laser head, compatible with kinds of laser engraving machines


Specification:

Effect output power: 80W

Output optical power: 10W

Material: aluminum alloy + plastic

Light color: blue

Wavelength: 450nm

Spot form: Punctiform, fixed focus

Input voltage: 12V 3.2A

Interface parameters: support TTL signal control power

Interface: XH2.54-3P socket

Module size: 6 * 4 * 4cm

Packing size: 18 * 6.5 * 7cm

Product net weight: 125g


Product List:

1* Laser Module

1 * 3-Pin Cable


LT-40W-F20-GOLD:


Product Description

[Product Features]

1.Blue laser module, a professional laser head with high speed and high stability. Bright blue light, easy to locate when carving.

2.Fixed focus laser head, suitable for three-axis engraving machine, easy to install.

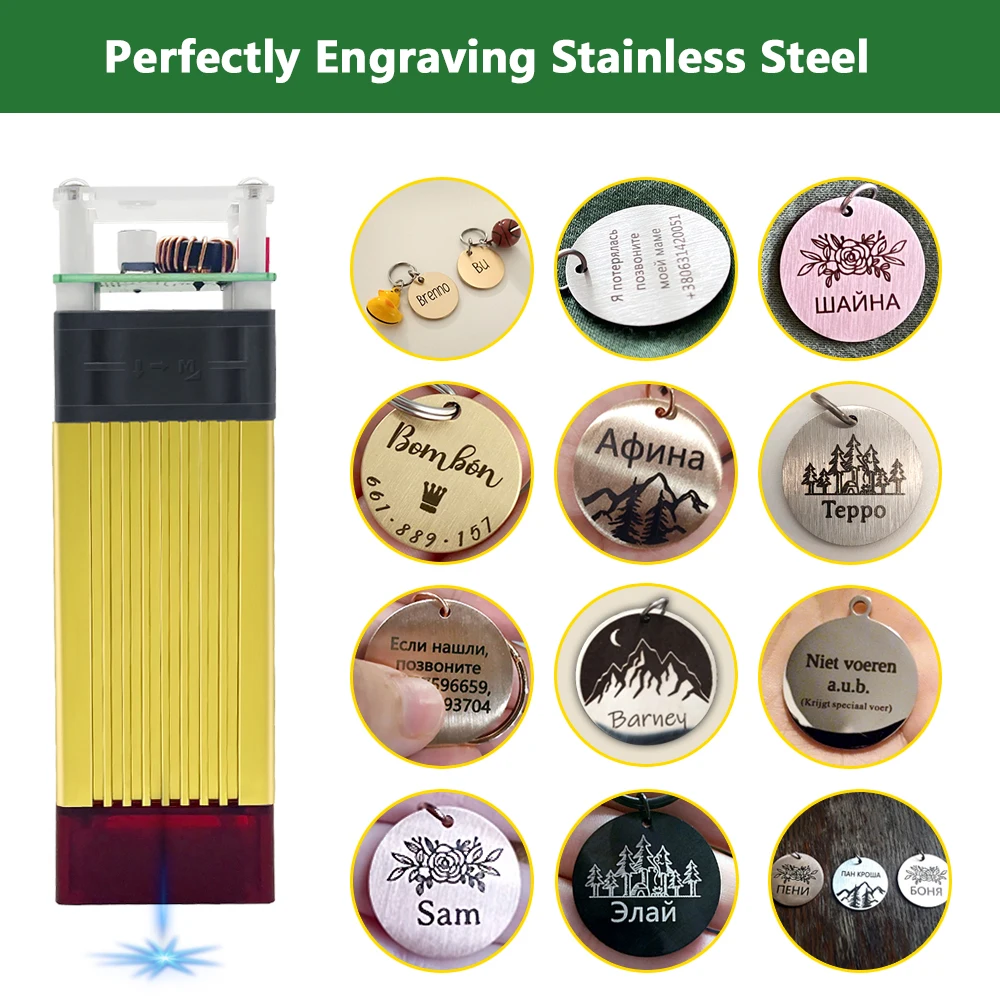

3.Directly engrave mirror stainless steel: no need painting black;

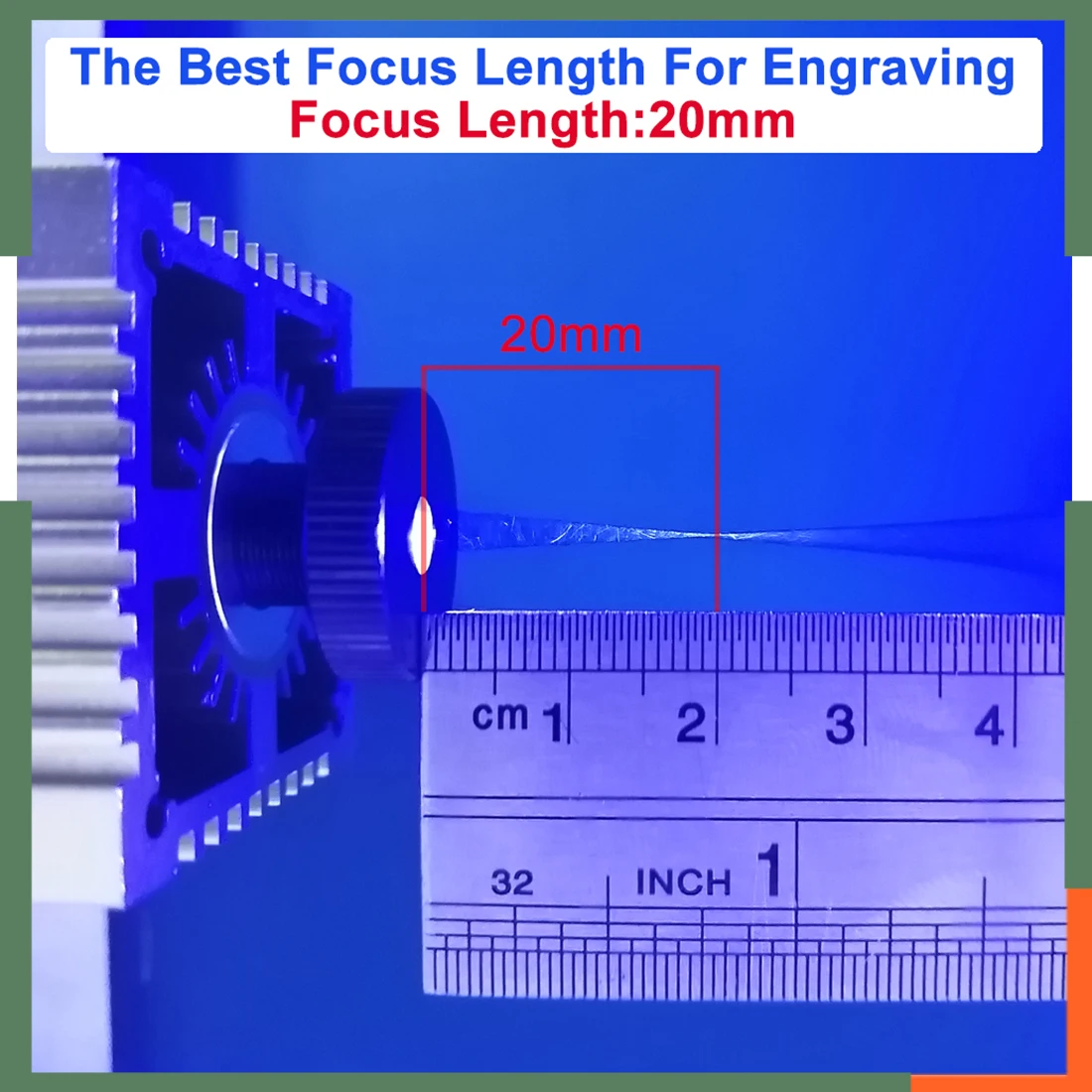

4. Super fast engraving speed: 304 stainless steel, up to 30mm/s with 20mm focus length;

5. Remarkable cutting ability: cutting through 4-5mm thickness plywood by one pass at speed of 2mm/s with 20mm foucs length.


[Original diode with FAC] Original diode, high quality,20,000 hours life time! Built-in FAC to make the beam size much smaller at focus, power density increase 4~5times, the engraving speed increase 4~5 times accordingly. At same time, the precision increase 4~5 times also. The solution make high engrave speed and high precision possible.


[Applicable Materials] Ceramics, Bone, MDF, Coated glass, Black acrylic, Mirror stainless steel, Plywood, Brushed stainless steel, Stone, Bamboo, Leather, Rubber, Alumina, Solid wood, etc.


[Precautions] Unable to engrave: blue/purple/white/transparent material, aluminum without oxide layer.


Specification:

Effect output power: 40W

Output optical power: 5W

Material: aluminum alloy + plastic

Light color: blue

Wavelength: 450nm

Spot form: Punctiform, fixed focus

Input voltage: 12V

Interface: XH2.54-3PIN socket

Interface parameters: support TTL signal control power

Item size: 12 * 4 * 4cm

Packing size: 14 * 6.2 * 6.2cm

Product weight: 300g

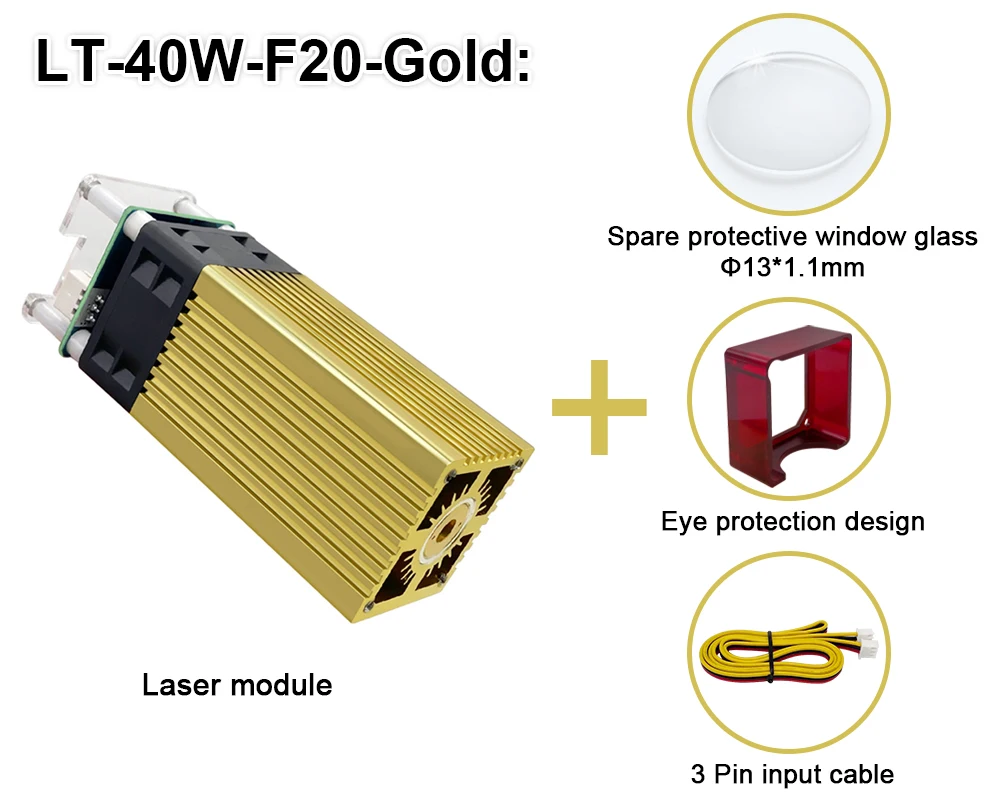

Packing List:

1 * Laser head
1* Eye protection cover
1* Spare protective window glass
1* 3-Pin cable


LT-40W-A-GOLD:


Product Description

The Blue Laser Module is designed for CNC mill. With 450nm wavelength, it is an effective tool for laser engraving and laser cutting. they can engrave and cut a variety of materials.


Features:

Blue Laser Module --- Professional laser head with high speed and high stability. Bright blue-violet light, easy for locating when engraving.

Adjustable Focus --- Adjustable laser head, easy to adjust, ensure engraving with good quality and high efficiency.

Easy to Assemble --- More mounting holes design, small and compact

Carving Material ---Wood, paper, leather, bamboo, plastic, rubber, alumina, stainless steel, copper,etc.


Specifications:

Specifications:

Effect output power: 40W

Output optical power: 5W

Material: Aluminum Alloy + Plastic

Light Color: Blue

Wave Length: 450nm

Facula Form: Punctiform, Adjustable Focus

Input Voltage: 12V

Interface: X2.54-3P Socket

Interface Parameter: Support TTL signal controls power

Item Size: 12*4*4cm

Package Size: 14*6.2*6.2cm

Item Weight: 300g


Package List:

1 * Laser Head

1 * 3-Pin Cable

LT-20W-A:


Product Description

The blue laser module is specially designed for CNC milling machine and DIY engraving. The wavelength is 450nm, which is an effective tool for laser engraving and cutting. They can engrave and cut various materials.


Features:

Blue Laser Module --- Professional laser head with high speed and high stability. Bright blue-violet light, easy for locating when engraving.
Adjustable Focuse --- Adjustable laser head, easy to adjust, ensure engraving with good quality and high efficiency.
Easy to assemble---small, compact, convenient and easy to install.


Specification:

Effect output power: 20W
Material: aluminum alloy + plastic
Light color: blue
Wavelength: 450nm
Spot form: Punctiform, Adjustable focus
Input voltage: 20W-12V 2A
Interface parameters: support TTL signal control power
Item size: 20W-9.5*3.5*3.5cm
Packing size: 20W-14*6.2*6.2cm
Product weight: 200g


Packing List:

1 * Laser head
1 * Cable
