ATOMSTACK X7 A10 S10 Pro 50W Laser Engraver Machine Powerful CNC DIY Engraving Cutting for Metal Wood Acrylic Offline Control Eye-protection

Feature

1.【Powerful 10W Output Laser Power 】True10W Output laser can easily cut 20mm thick wood, 15mm thick black acrylic; can directly engrave mirror stainless steel metal, ceramics, glass, and engraving &The cutting speed is 40% higher than the ordinary model, which can be comparable to the effect of the 150W CO₂ laser engraving machine.
2.【Eye-Protection 】Flame-retardant Filter Panoramic Glass can filter 97% of the ultraviolet light, which can protect your eyes. you can also clearly Watch laser engraving.
3.【Solid And Easy Installation 】The all-aluminum alloy anodized structure design makes more durable, and improves the accuracy of engraving. the assembly can generally be completed within 10-20 minutes.
4.【Upgraded High-performance Fixed-focus Laser】No need to adjust the focus before engraving; the new laser focal spotis 50% smaller than other ordinary lasers.
5.【Wide Compatibility】support Win XP / Win 7 / Win 8 / XP / Win 10, and also support MAc system (LightBurn), engraving file format supports NC, BMP, JPG, PNG, DXF etc.

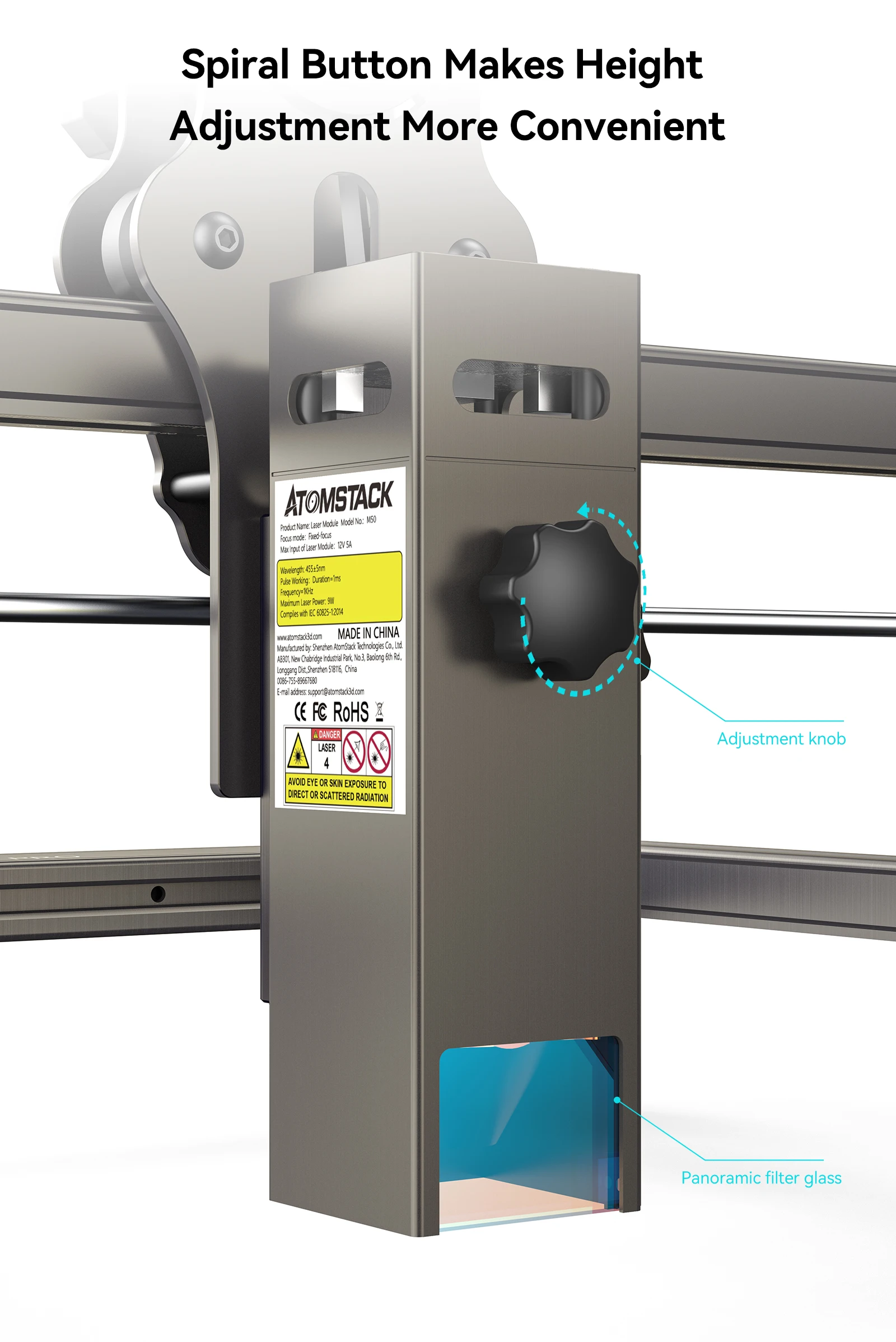

6.【With Knob】It is more convenient and quick to adjust the height of the laser.
7.【Support Offline Engraving】S10 PRO configures the terminal 32bit control panel, supports offline engraving, you can carry out engraving work anytime and anywhere without being restricted by the computer.
8【Emergency Stop Button】In the event of an unexpected situation, stop the machine at any time to make the engraving safer.

Specification

1.Model:ATOMSTACK S10 Pro
2.Laser Power:50 W
3.Laser Output power:10-11W
4.Laser Spot:0.08mm*0.08mm
5.Material:Aluminium Alloy
6.Engraving Accuracy:0.01mm
7.Working Size:410*400mm
8.Operating Software: LaserGRBL\LightBurn
9.Support Systerm:Win XP / Win 7 / Win 8 / XP / Win 10 /MacOSX system
10.Input Voltage:AC100-240V
11.Output Voltage:DC12V5A
12.Carving Objects:Wood\Bamboo\Cardboard\Plastic\Leather\ PCB board\Aluminum oxide\Non-reflective Electroplating layer and paint surface layer metal\304 mirror stainless steel\Glass\Ceramics\Cotton Cloth\Slate.etc
13.Cutting Objects:Cardboard\Non-woven fabric\20mm Wood board\15mm Acrylic\Some thin plastic board\Sponge.etc(once cut)

S10 PRO Include:

1 x Mounting screw
1 xTool kit
4 x Foot pad foam
1 x Film
3 x Acrylic sheet
3 x Wood chips
10 x Wire tie
1 x Desiccant
1 x Brush
1 x Clean cloth
1 x Card reader
1 xTF Card
1 x Power adapter
1 x Instruction
1 x Data line
1 xTouch Screen Components
1 x HDMI Cable
1 x Dual-Laser Module
1 x Cutting pad
1 x X axis assembly
1 x Y axis left profile
1 x Y axis right profile
1 x Profile on the base
1 x Under the base profile
3 x Foot bracket

Suggest order with S10 pro

1.S10 extention shift: can expand the work area from 410*400mm to 850*410mm.
2. Honeycomb Board :prevent laser burning workbench or desktop. At the same time,protect the desktop from laser damage.
3.Air Assist :prevent the smoke and dust from causing laser energy attenuation, ensure the stability of laser energy.
4.R3 pro roller :Cylindrical Objects with 360° Rotating Engraving Axis 8 Angle Adjustments Engraving Diameter.

Extention shift :Working Area expand to 850*410mm

Honeycomb Board

R3 PRO Roller

Air Assist
