S&D Engraving Services Limited

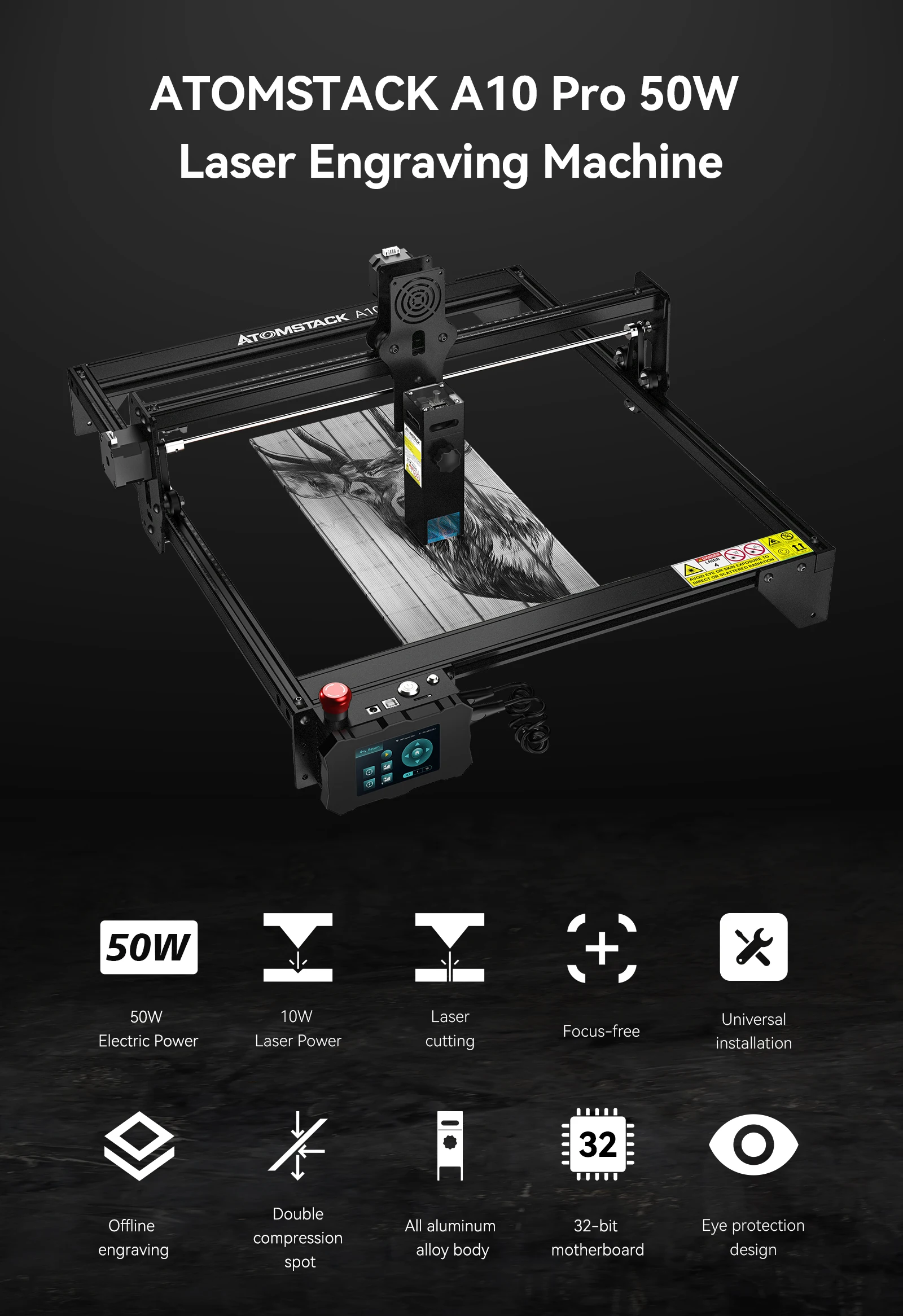

ATOMSTACK A10 PRO 150W Effect Laser Power 10W Engraving and Cutting Machine Metal Arcylic Wood Leather CNC Cutter Engraver

ATOMSTACK A10 PRO 150W Effect Laser Power 10W Engraving and Cutting Machine Metal Arcylic Wood Leather CNC Cutter Engraver

Regular price £585.99 GBP
Regular price £761.99 GBP Sale price £585.99 GBP
Sale Sold out
Shipping calculated at checkout.
color
Ships From
Plugs Type

SPECIFICATIONS

Precision: 0.01

Origin: Mainland China

Operating System: LaserGRBL LightBurn

Maximum Print Size: 410*400mm

Language: English

Interface Type: USB

File Format: NC, BMP, JPG, PNG, DXF

Certification: CE

CE Certification: Yes

Brand Name: ATOMSTACK

Features:

1.The new filter panoramic glass eye protection design: the panoramic filter glass protective cover plays a very good role in protecting your eyes, filtering 97% of the ultraviolet light, you and the people around you do not need to wear goggles, you can also watch laser engraving . Reduce the cost of your goggles and the inconvenience of wearing goggles.

2.Solid and easy installation structure design:The all-aluminum alloy anodized structure design makes the machine more durable, and improves the accuracy of engraving. The entire structure has been designed for quick assembly, and the assembly can generally be completed within 10-20 minutes.

3、Upgraded high-performance fixed-focus laser: no need to adjust the focus before engraving;The focal spot area of the new laser is only 1/3 of the spot area of other ordinary lasers, new laser combine precision engraving and high energy cutting at the same time. The laser power of the fixed-focus laser is more stable than the zoom laser.

4.Wide compatibility:The machine can be compatible with various mature engraving software, such as LaserGRBL, LightBurn, support Win XP / Win 7 / Win 8 / XP / Win 10, and also support MAc system (LightBurn), engraving file format supports NC, BMP, JPG, PNG, DXF etc.

5.Precise scale lines axis :There are precise scale lines on the X-axis and Y-axis to facilitate quick length measurement. 410x400mm large area engraving interval can meet your various engraving needs.

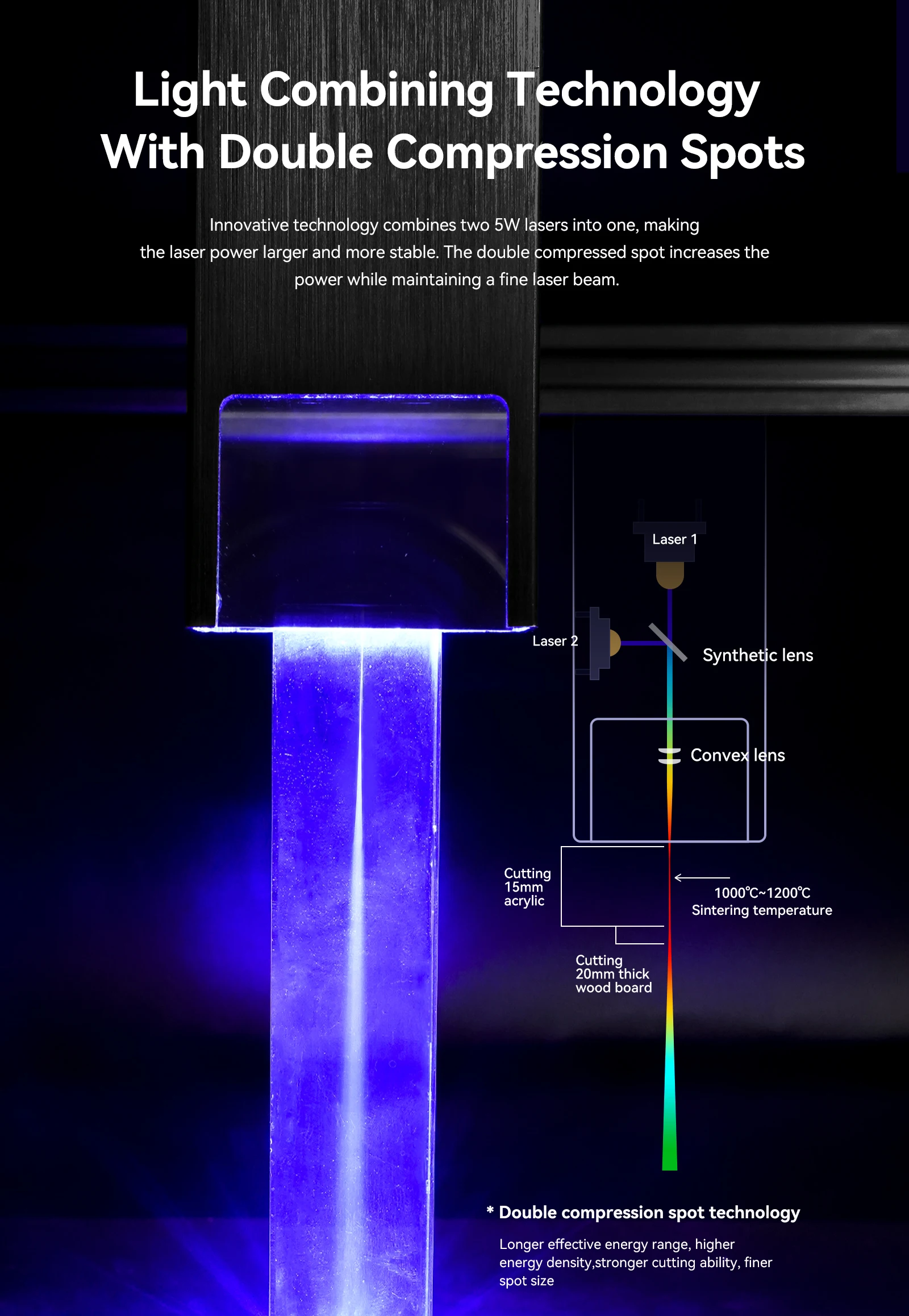

6.Upgraded dual compression spot coupling technology: ultra-fine laser focus area is reduced to 0.06*0.06mm, high-density laser can easily cut 20mm thick wood, 15mm thick black acrylic; can directly engrave mirror stainless steel metal, ceramics, glass, and engraving &The cutting speed is 40% higher than the ordinary model, which can be comparable to the effect of the 150W CO₂ laser engraving machine.

7.Integral screw rod: The machine uses an integrated screw rod instead of a combined coupling. The stepping motor and the screw rod are integrated, which makes the movement of the laser more precise and the coupling more durable.

8.New laser with knob: It is more convenient and quick to adjust the height of the laser.

9. Support offline engraving: ATOMSTACK A10 PRO configures the terminal control panel, supports offline engraving, you can carry out engraving work anytime and anywhere without being restricted by the computer.

10. The laser sintering temperature is up to 1200℃

11. Emergency stop button: In the event of an unexpected situation, stop the machine at any time to make the engraving safer

12. Stopper: Yes

13. Reset switch: Yes

14. Expandable engraving size: modular design of the body mechanism, only need to replace the frame components, you can get 410*850mm super large engraving size

Product description:

Item model number: ATOMSTACK A10 PRO
Print Size: Recommend Print Size 410*400mm

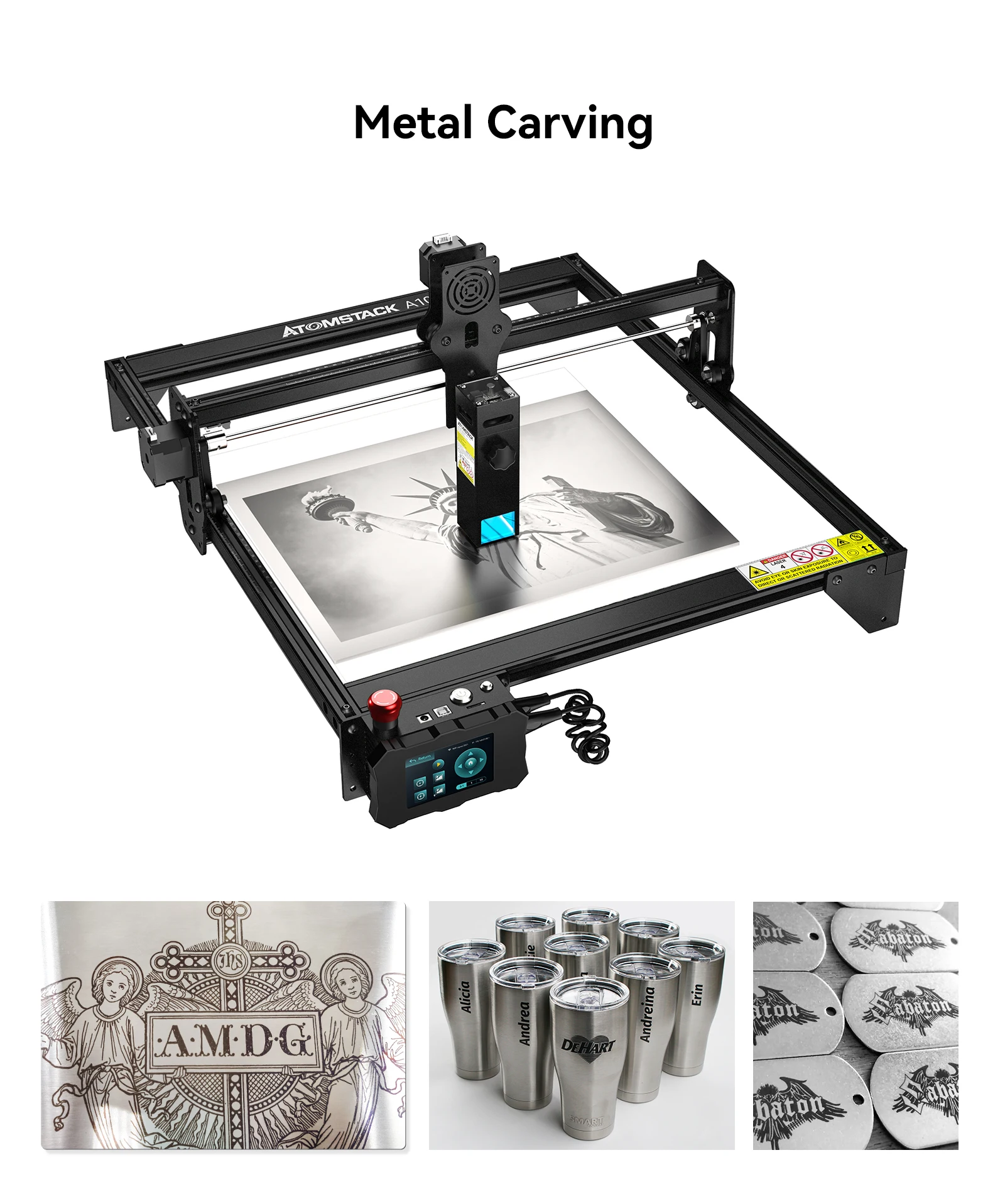

Carving Objects:Wood, bamboo, cardboard, plastic, leather, PCB board, aluminum oxide, non-reflective
Electroplating layer and paint surface layer metal, 304 mirror stainless steel, glass, ceramics, cotton cloth, slate;
Cutting Objects:Cardboard, non-woven fabric, wood board, acrylic, some thin plastic board, sponge;
Laser power: 50W
Laser output power: 10-11W
Wave Length: 445 ± 5nm
Engraving accuracy: 0.01mm
Focusing method: fixed focus laser, no need to focus
Laser protective cover: Protect the user's eyes and prevent pets from grabbing the laser spot.
Operating software: LaserGRBL, LightBurn, support Win XP / Win 7 / Win 8 / XP / Win 10 system.
Input Format: NC, BMP, JPG, PNG, DXF, etc.
Data transmission method: USB connection.
Input Voltage: AC100-240V, 50/60Hz
Output Voltage: DC12V, 5A
Certification: CE FCC RoHS FDA PSE

A10 PRO LASER ENGRAVER PACKAGE:

1 × mounting screw
1×tool kit
4×Foot pad foam
1×Film
3×Acrylic sheet
3 × wood chips
10×Wire tie
1×desiccant
1×brush
1×Clean cloth
1×card reader
1×TF card
1×power adapter
1×Instruction
1×data line
1×Touch screen components
1×HDMI cable
1×laser module
1×cutting pad
1×X axis assembly
1×Y axis left profile
1×Y axis right profile
1×Profile on the base
1×Under the base profile
3×foot bracket

Note:

●When operating the laser engraving machine, please install the laser protective cover. If it is not installed, you need to wear goggles.
● Please do not touch the laser emitter with your hand, or it may burn your hand.
● Please avoid strong impact on the machine.
● Children under 14 are not allowed to use this product and children over 14 need adult supervision.
● The light engraving machine can not be directly applied to any mirror reflecting object, which may cause injury to the operator or burn the laser.
